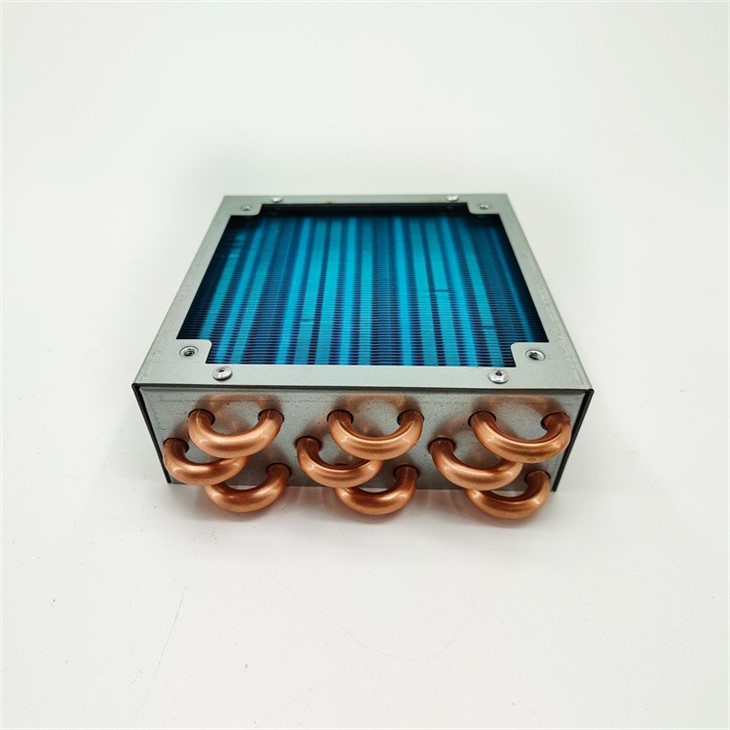

Fin Condenser With Fan Cover
The condenser can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast way. Both the condenser coil and the evaporator are important parts of an air conditioning system. They work together to cool your home, so the evaporator coil cannot...
Hauj lwm lawm
The condenser can convert gas or vapor into liquid, and transfer the heat in the tube to the air near the tube in a very fast way.
Both the condenser coil and the evaporator are important parts of an air conditioning system. They work together to cool your home, so the evaporator coil cannot complete the cooling cycle without the help of the condenser coil.
Technical advantages of finned condensers:
1. Fins produced are of high quality standards.
2. The edges of the fins can be straight or corrugated, depending on the application.
3. All coils are 100% leak tested and cleaned inside and out by a heated oven with high temperature air circulation.
4. The mechanical expansion of the copper tube to the fin ensures the efficient heat transfer of the condenser and evaporator.
5. Superior raw materials: We source only the highest quality raw materials from around the world to manufacture heat exchangers that meet global standards.
6. Copper tubes with diameters of 7mm, 7.94mm, 9.52mm and 12.75mm.
7. Blue aluminum foil with hydrophilic and biological (healthy) properties.
Certificate of honor
Product superiority
Factory actual shoot
Service process
Packaging transportation
We can provide products according to your requirements, please contact me for more information.
Specification of aluminum tube fin condenser
| Aluminum tube | Hole distance | Column distance | Flating height of fin |
| 7 | 21 | 12.7 | 1.6-2.4 |
| 7 | 21 | 18.2 | 1.5-4.5 |
| 9.52 | 25 | 21.65 | 1.8-5.7 |
Specification of copper tube fin evaporator&condenser
| No. | Copper tube | Hole distance | Column distance | Flating height of fin |
| 1 | 5 | 19.05 | 16 | 1.5-5 |
| 2 | 5 | 21 | 18.2 | 1.5-5 |
| 3 | 6 | 25 | 21.65 | 1.4-6 |
| 6.35 | 25 | 21.65 | 1.4-6 | |
| 4 | 7 | 25 | 21.65 | 1.4-6.5 |
| 5 | 7 | 21 | 12.7 | 1.4-3 |
| 6 | 7 | 21 | 18.2 | 1.4-6.5 |
| 7 | 7 | 21.8 | 20 | 1.5-4.5 |
| 8 | 7.94(5/16) | 25 | 21.65 | 1.4-5 |
| 9 | 9.52(3/8) | 25 | 21.65 | 4.0-10 |
| 10 | 9.52(3/8) | 25.4 | 15.88 | 1.4-3 |
| 11 | 9.52(3/8) | 25 | 12.5 | 1.8-5 |
| 9.52(3/8) | 25 | 25 | 1.4-4 | |
| 12 | 9.52(3/8) | 35 | 35 | 5.0-10 |
| 13 | 12(7/16) | 35 | 35 | 6-8.5 |
| 14 | 12.7(1/2) | 31.75 | 27.5 | 6-8.5 |
